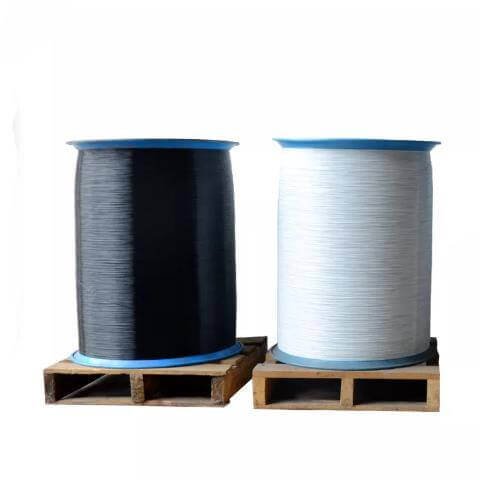

Custom Nylon Coating Thickness for Nylon Coated Wire
Custom Nylon Coating Thickness for Nylon Coated Wire
In the mass production of stationery, the thickness of the nylon coating directly determines the smoothness of wire forming, durability, and consistency in the appearance of the finished product.
Why Coating Thickness Matters in Mass Production?
In actual production, improper coating thickness control often leads to the following issues:
Excessively thick coating:
- High forming resistance
- Prone to cracking or surface wrinkling during bending
Excessively thin coating:
- Insufficient coverage, high risk of exposed steel
- Uneven color, reduced wear resistance
Inconsistent Thickness:
- Uniformity issues in product feel and appearance
- Incompatibility between batches for mixed use
Therefore, truly effective thickness customization must be grounded in equipment adaptability + mass production stability.
How to Control Coating Thickness Consistency in Mass Production
Standardization of Production Parameters
Establish fixed process parameters for different thickness ranges. Verify stability under mass production conditions
Continuous Monitoring During Process
Monitor coating thickness throughout production. Adjust speed and temperature promptly to maintain thickness consistency
Batch-to-Batch Reproducibility Control
Ensure uniformity of the same thickness specification across different batches. Guarantee repeat orders require no re-calibration
How to Control Coating Thickness Consistency in Mass Production
The following coating thicknesses represent the controllable range for mass production and are suitable for the continuous production of twin ring wire, spiral binding wire, and colorful metal paperclips.
| Coating Type | Single-Side Coating Thickness (mm) | Total Diameter Increase (mm) | Key Characteristics | Typical Applications |
| Light Coating | 0.10 – 0.18 | 0.20 – 0.36 | Low forming resistance, stable spring-back | High-speed spiral binding, precision paperclips |
| Standard Coating | 0.18 – 0.25 | 0.36 – 0.50 | Balanced performance and formability | Standard twin ring & spiral binding |
| Thick Coating | 0.25 – 0.35 | 0.50 – 0.70 | Enhanced wear resistance and protection | Premium stationery, thick documents |
| Reinforced Coating | 0.35 – 0.45 | 0.70 – 0.90 | Maximum durability and surface protection | Special applications and custom projects |
